Microprism Lens Array

Designed for optical communications, display and imaging systems, and advanced light management applications.

Precision molded prism geometry: Accurate control of prism shape, pitch, and angles.

Monolithic all-glass design: High mechanical stability and long-term reliability.

Excellent optical performance: High refractive index with low dispersion.

Enhanced manufacturing efficiency: Fewer components and alignment steps reduce potential failure points.

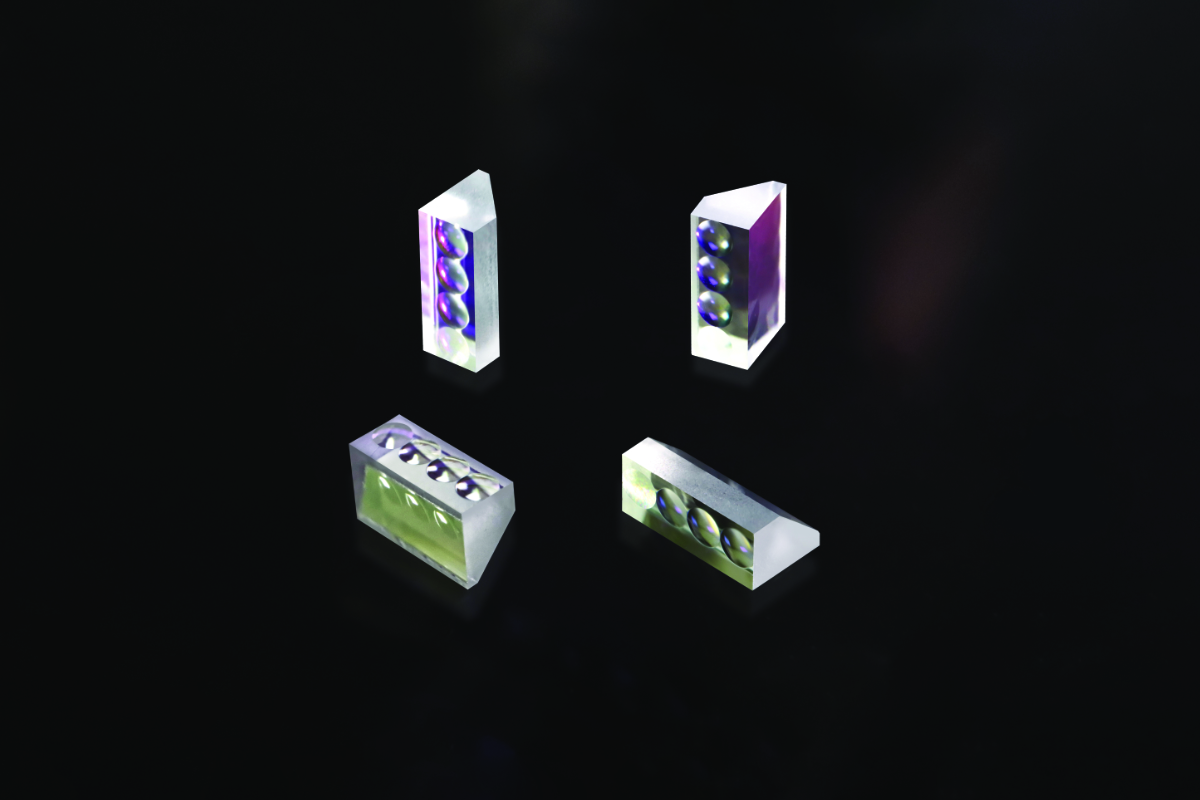

Microprism Lens Array

Key Specifications

Material

D-LAF50 (Customizable upon request)

Outer Dimensions

3 x 2.01 x 1.22mm (Customizable upon request)

Designed Wavelength

1310/1550nm

NA

0.15~0.25

Focal Length

1.0~2.5

Working Distance

0.62

Optical Coating

R＜0.2%@1260-1340nm

Applications

Optical Transceivers

Optical Transceivers
VR/AR/AI Glass

VR/AR/AI Glass
3D Sensing

3D Sensing
Machine Vision

Machine Vision
Illumination

Illumination
